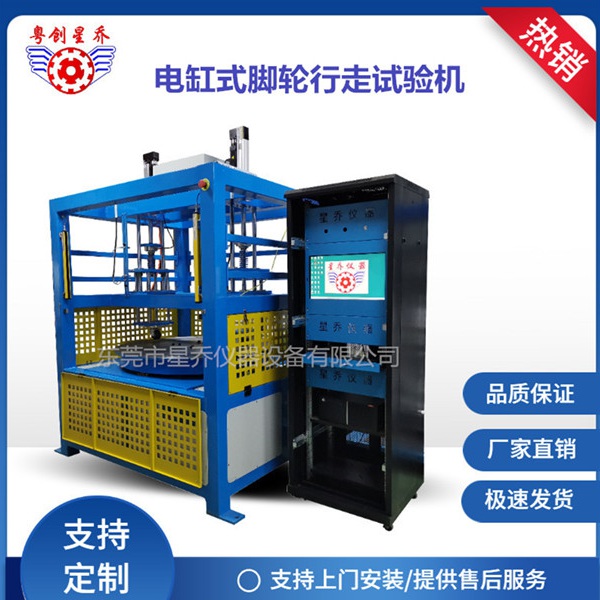

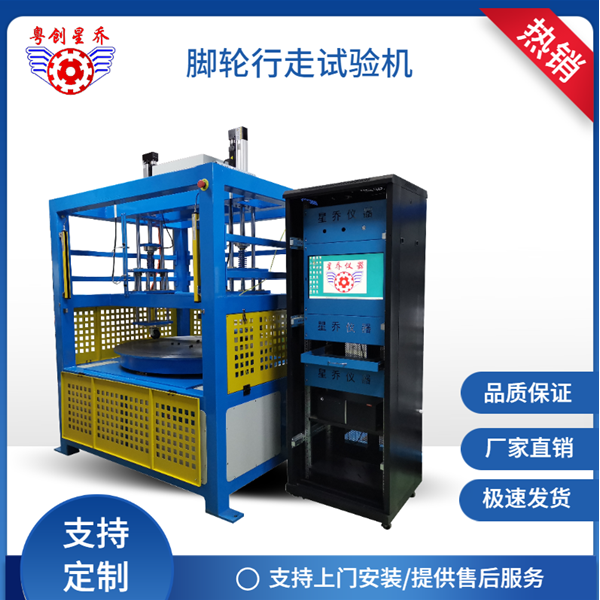

XQ-896E Wheel Fatigue Life Testing Machine
I. Application Scope of Wheel Fatigue Testing Machine:
The wheel fatigue testing machine is a high-quality fatigue life testing machine with intelligent, diversified and advanced technology. It enables tests at different driving speeds and is used for industrial foot wheels, office foot wheels, universal wheels, etc. for durability fatigue life tests of walking, walking distance, etc., as well as static pressure tests, etc. Supplier and manufacturer of fatigue testing machines in Guangdong, Xingqiao.
II. Advantages of the Wheel Fatigue Testing Machine:
1.The fully touch-controlled system allows for the setting of speed, driving speed, obstacle detection, etc. on the touch screen at will.
2. The test data can be printed as reports using a micro printer and can also be copied onto a USB drive and imported into a computer for printing on A4 paper.
3. The machine will automatically shut down in case of product testing failure.
4. The automatic lifting of the equipment ensures that the product is no longer in contact with the turntable. To remove or install the product, simply press the up or down button on the touch screen.
5. The mechanical weight type is used to complete the measurement of the applied load.
6. Implement the control of fatigue test loads and the emergency stop function for fatigue failure.
7. With the aim of achieving higher reliability and stability, this is a high-end type of Guangdong castor fatigue testing machine and closed-loop color touch screen control system designed based on market demand. It realizes independent control of the touch screen and is mainly composed of a high-performance mechanical structure.
III. Structure of the Wheel Fatigue Testing Machine:
1.The caster testing machine has a frame structure.
2. The loading capacity of the wheel fatigue testing machine is controlled by mechanical weights.
3. The turntable rotates under the drive of the motor.
4. The system is controlled and monitored by an intelligent touch-type interface.
IV. Main parameters of the wheel fatigue testing machine:
1.Test station: 2 stations (synchronized)
2. Load capacity: Two groups - 450kg and 150kg
3. Weights: 2 sets (as specified by the customer)
4. Obstacle height: One set (as per standard configuration)
5. Power supply voltage: 380V ± 10% 50Hz
6. Diameter of the rotating disc: 3 meters (performed in accordance with the standard)
7. Power: 7.5KW
8. Speed unit: KM/H, M/S (any conversion)
V. Precautions for the Wheel Fatigue Testing Machine;
1.Before conducting the wheel fatigue test, please ensure that the three-phase power supply is connected correctly.
2. When installing the load (weights) and the test wheels, make sure that the bracket is not loose in any way (such as with loose screws). If any looseness is detected, ensure it is tightened before conducting the test.
3. When the wheel fatigue testing machine is in operation, it is strictly prohibited to press and drag the driving disc with your hands.
4. The mechanical transmission parts must be maintained regularly and lubricating oil should be added.
5. After the test is completed, it is necessary to ensure that the power supply has been turned off.
6. The wheel fatigue testing machine must not be wiped with auxiliary corrosive liquids. Instead, rust-proof oil should be used.
7. Guangdong Xingqiao Fatigue Testing Machine Supplier Factory specializes in manufacturing castor testing machines. The company has a wide range of products in stock and can provide relevant operation videos.
