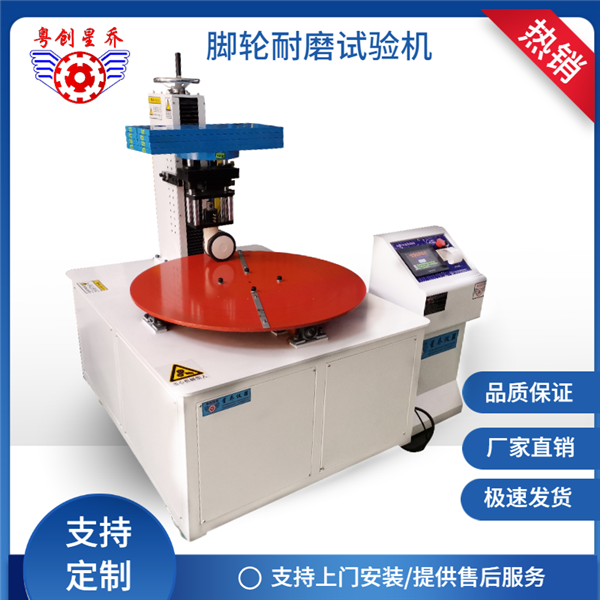

XQ-896 A Automatic Rotary Wheel Testing Machine
I. Application scope of the caster testing machine:
1.The foot wheel machinery is mainly used for industrial foot wheels, office foot wheels, and universal wheel walking durability and fatigue life testing machines.
2. The automatic turntable caster testing machine is a high-quality fatigue life testing machine featuring intelligent and diversified advanced technology, capable of conducting tests at different driving speeds.
3. According to the customer's requirements for the casters, we can also test the automatic turntable caster testing machine and the static pressure testing machine.
II. Main advantages of the caster testing machine:
1.Touch control allows for flexible settings of driving speed, obstacle detection, test duration, and forward/reverse functions, among others.
2. After the test is completed, the data can be printed as reports using a mini printer, or copied onto an additional USB drive for importing into a computer to generate A4-sized reports.
3. The automatic turntable caster testing machine can automatically stop running when the caster is damaged, providing mechanical automatic protection.
4. Depending on the different mechanical testing methods of the wheel machine, various standard experiments can be carried out.
5. The load testing is based on the principle of weights, ensuring more accurate and reliable test results.
6. With the aim of achieving greater reliability and stability, this is an economical type of caster machine mechanical control system with a closed-loop color touch screen, designed based on market demands. It features independent control by the touch screen and a high-performance mechanical structure as the main body.
7. The installation fixture travel can be adjusted arbitrarily according to the wheel diameter of the customer's product.
III. Structure of the Foot Restraint Testing Machine:
1.The frame structure of the caster testing machine.
2. The load applied by the caster testing machine is controlled by the original mechanical weights.
3. The turntable rotates under the drive of the motor.
4. The system is controlled by individual intelligent touch panels.
5. The movement mode of the entire machine is controlled by four silent wheels with brakes, which is both convenient and reliable.
IV. Main parameters of the caster testing machine:
1.Load capacity: 200 - 300 kg (can be customized according to customer requirements)
2. Weights: 1 set (stacking type)
3. Obstacles: 1 set (as per standard configuration)
4. Diameter of the rotating disc: 2 meters (scale at 0.5 meters)
5. Power supply voltage: 380V ± 10% 50Hz
6. Power: 3.5KW
7. Speed range: 5 - 5000 m/h (can be set arbitrarily)
8. Miniature printer: 1 unit
9. Speed unit: KM/H, M/S (any conversion)
10. Rotation direction: Supports forward and reverse rotation.
11. Test range for footrest height: Diameter: 25 - 250 mm
12. Tray lifting range: 50 - 200 mm
V. Operating Steps of the Foot Rest Test Machine:
1. First, install the castor wheels on the testing fixture.
2. Supply power to the machinery.
3. Turn on the main power supply, and the indicator light will light up.
4. Enter the intelligent touch screen and set the required test values.
5. Complete the test.
VI. Notes for the Footrest Testing Machine:
1.Before conducting the test with the castor tester, please ensure that the three-phase power supply is properly connected or plugged in.
2. When installing the load (weights) and the casters, make sure that the bracket is not loose in any way (such as with loose screws). If any looseness is detected, tighten it before conducting the test.
3. When the castor testing machine is in operation, it is strictly prohibited to press and drag the moving plate with your hands.
4. The mechanical transmission parts of the caster testing machine must be regularly maintained and lubricated with oil on a regular basis.
5. After the footrest testing machine has completed the test, it is necessary to ensure that the power supply has been turned off.
6. The footrest testing machine must not be wiped with corrosive liquids. Instead, rust-proof oil should be used.
7. The caster testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
