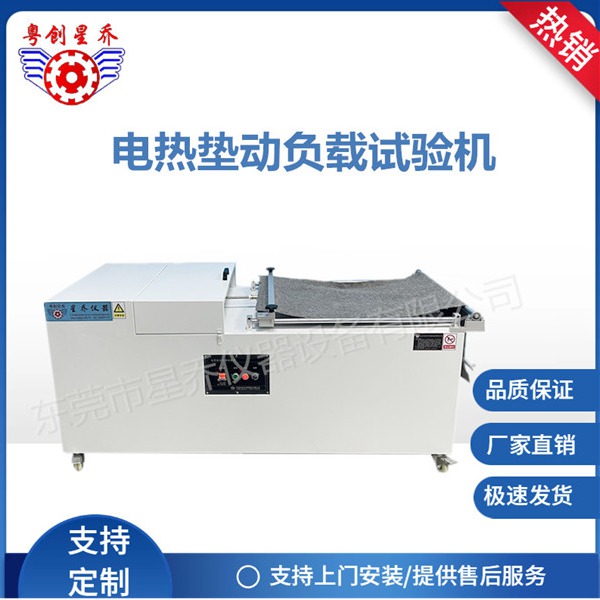

XQ-01-1 Electric Heating Pad Dynamic Load Testing Machine
I. Application scope of the electric heating pad load testing machine;
This instrument is suitable for conducting mechanical strength tests on electric heating pads in their actual usage state. It has a reasonable and compact structure, is easy to use, and has an attractive appearance. It is an essential testing instrument for inspection institutions and manufacturers of electric heating pads.
II. Test standards for electric heating pad dynamic load testing machine;
This testing machine complies fully with the 21.103 test requirements stipulated in GB4706.8-2008 "Safety of Household and Similar Appliances - Special Requirements for Electric Heating Blankets, Electric Heating Mats and Similar Flexible Heating Appliances", as well as the relevant technical requirements of QB/T2994-2008 "Electric Heating Blankets, Electric Heating Mats and Electric Heating Cushion Mats". It meets the latest version of the "Detailed Rules for the Production License of Electric Heating Blankets".
III. Main parameters of the electric heating pad dynamic load testing machine;
1. Horizontal drive speed: 125mm/s
2. Horizontal roller: φ25mm
3. Load: 0.5kg or 3g/mm
4. Counting range: 0 - 99999 (user-defined)
5. Fixture installation device: Width 800MM
6. Drive stroke: Adjustable from 100mm to 800mm
7. Starting point adjustment device.
8. Power supply: 220V/50HZ
9. External dimensions: approximately 1400*600*600mm
IV. Main functions of the electric heating pad dynamic load testing machine;
Functions: Power supply / Start / Stop / Speed regulator / Counting
V. Structure of the Electric Heating Pad Load Testing Machine;
This testing machine adopts a box-type structure. The unique internal design is independently developed by Xingqiao. The testing speed is achieved through a motor speed controller. The stroke adjustment and the number of tests can be set arbitrarily. The mechanical adjustment is carried out using Xingqiao's unique design.
VI. Advantages of the Electric Heating Pad Load Testing Machine;
This testing machine can conduct dynamic load bending tests for different products. Depending on the size of the product, the mechanical stroke can be adjusted arbitrarily, and the speed will be set according to the standard.
VII. Operating Procedures for Electric Heating Pad Load Testing Machine;
1. First, fix the product onto the test fixture.
2. The stroke can be adjusted at will according to the length of the sample.
3. Turn on the main machine, set the desired speed and frequency.
4. Once the required value is reached or during the product testing process, the machine will automatically shut down upon encountering a breakage.
VIII. Notes for the Electric Heating Pad Load Testing Machine;
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use secondary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
