I. Overview:

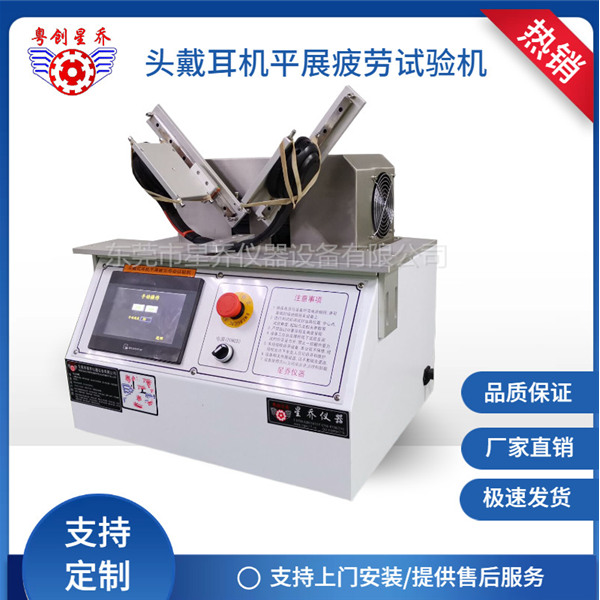

Specifically designed for the fatigue test of flat and oscillating headsets. It is used to check whether the rotating shaft of the finished or semi-finished products still has retention force after being repeatedly unfolded and reset. It is suitable for use in factories and research institutions for development evaluation.
II. Main Parameters:
1.Test station: 1 station
2. Initial swing arm width: 100mm
3. Adjustable working surface height: 0 - 60 mm
4. Angle setting: Can be set within the range of 0 to 180 degrees arbitrarily.
5. Number of times setting: 1 to 999999 (can be set arbitrarily)
6. Expansion speed: Adjustable from 1 to 20 times per minute
7. Weight: Approximately 120 kilograms
8. Power Supply: AC 220V / 50 Hz
9. Overall machine dimensions: (Length * Width * Height) 600 * 480 * 600 mm
III. Advantages:
1.Apply bilateral force to ensure that the force is evenly distributed on both sides, without any shaking or swaying.
2. Main drive structure: Servo motor + servo driver + PLC developed by Xingqiao + Weilun 7-inch color screen.
3. On the touch screen, you can freely set the speed, angle, number of repetitions, display and reset.
4. The unit speed can be set to two different modes (per minute or per degree).
5. Limit protection; maximum angle protection by software + bilateral limit switch protection + motor overload protection.
