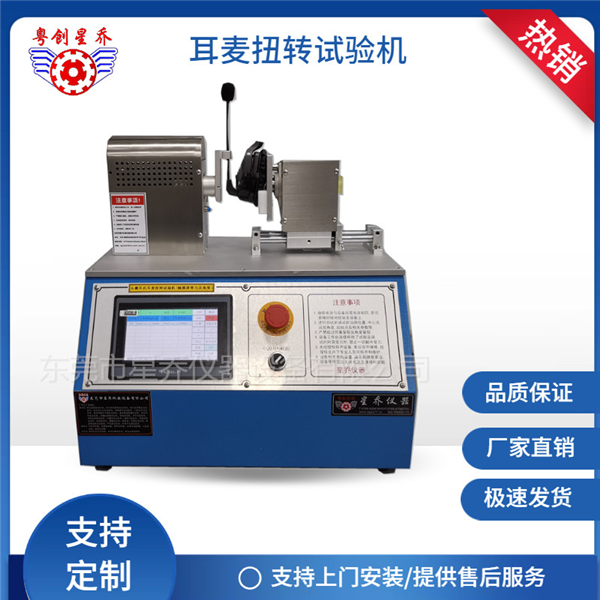

QX-862DF Headset Earphone Torsion Testing Machine
I. Overview of this machine:
This testing machine is specifically designed for conducting fatigue life tests on head-mounted headphones and earphones, as well as for measuring torque values. It can determine whether the device still maintains its force or the resistance at the shaft increases and causes damage to the plastic body after multiple rotations. It features adjustable angles, customizable number of rotations, display of torque values, and automatic shutdown when the set number of rotations is reached.
This machine is equipped with an intelligent 7-inch touch screen + PLC + servo motor control. The angle setting is angle-based without the need for mechanical adjustment. You can directly input the angle, number of times, and speed on the touch screen, and the machine will automatically reset and complete the test. It is suitable for use in headphone factories and research institutions for development and evaluation purposes.
II. Main Technical Specifications:
1. Operating Power Supply: AC 220V/50Hz
2. Power: 400W
3. Test speed: Touch settings
4. Rotation Angle: Touch any position for setting.
5. Torque range: 20 NM
6. Test Station: 1 station (Testing of finished head-mounted headphones)
7. Jig: 1 set
8. Span: Adjustable
9. Total folding times: 0 - 999999 Touch settings
10. Resetting the count: Automatic and manual conversion functions
11. Dimensions: (Length * Width * Height) 620 * 310 * 400 mm
12. Weight: Approximately 68 kilograms
13.Test data: Full-screen touch display
III. Main Features:
1. All test conditions can be directly input and controlled through touch operation.
2. It can display the actual angle, speed, frequency and torque value of the product.
3. According to the size of the tested product, adjust the fine-tuning tool to ensure that the rotating shaft and the transmission shaft of the product are aligned.
4. The hardware adopts precision servo motor + high-precision PLC + 7-inch color touch screen. It operates smoothly, has high positioning accuracy, long service life and low noise.
5. Touch screen provides internal startup, reset, starting point reverse rotation for point finding, etc. prompt functions.
