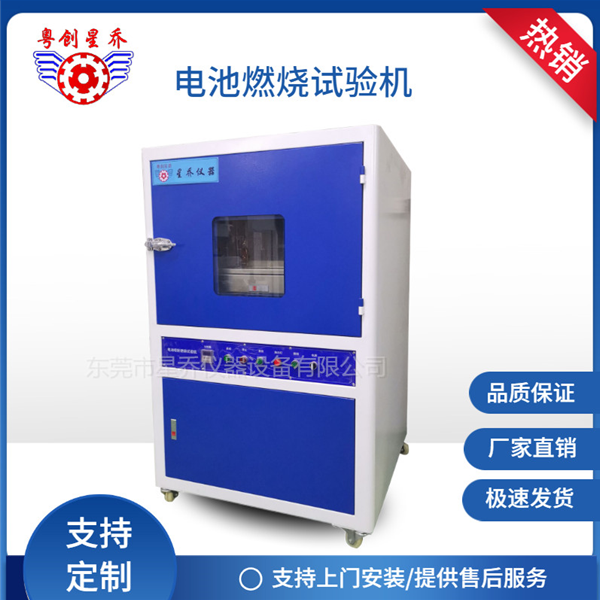

XQ-2045 Battery Combustion Testing Machine
I. Application Scope of Battery Combustion Test Machine;
After charging the battery according to the test method specified in 4.5.1, place the battery on the wire mesh of the test fixture. If the battery slides during the test, a single metal wire can be used to fix the battery sample on the wire mesh; if no such situation occurs, the battery must not be bundled.
II. Main parameters of the battery combustion testing machine;
1. Burner: Bunsen burner, inner diameter of the nozzle is 9.5 mm, length is approximately 100 mm.
2. Remote wireless remote ignition: within 10 meters
3. Flame application time: 0 - 999.9 seconds ± 0.1 seconds
4. Flame height: Adjustable from 10 to 75 ± 2 mm
5. Automatic ignition, with the test process automatically controlled.
6. Test cover width: 24" (610MM), octagonal shape
7. Exhaust Outlet: Diameter 105MM
8. Test cover height: 12″ (305mm)
9. Test cover dimensions: 305mm x 610mm, octagonal shape
10. Test cover height: 305mm
11. Diameter of the test circular hole surface: 102mm
12. Power Supply: 220V, 50/60Hz, 5A;
13. Mesh material: Stainless steel.
14. Machine dimensions approximately; L1000*W1000*H1150MM
15. Weight approximately 100 kilograms
16. A lighting lamp is installed on the top of the box.
III. Advantages of the Battery Combustion Test Machine;
1.This testing machine is made of both inner and outer stainless steel materials.
2. The machinery is manufactured according to the standard specifications.
3. Easy to connect power supply and simple to operate.
IV. Structure of Battery Combustion Test Machine;
1.This testing machine is made of stainless steel on both the inside and outside.
2. The octagonal cover is made of the specified standard material.
3. The machine is suitable for conducting ignition tests using methane and gas.
V. Operating Procedures for Battery Combustion Test Machine;
1. First, place the product in the testing area.
2. Connect the methane or gas.
3. Mechanical power-on.
4. Set a time for the test.
VI. Notes for Battery Combustion Test Machine;
1.Before conducting the test, please make sure that the power/air source is properly plugged or connected.
2. When the machine is in operation, it is strictly prohibited to get too close to it.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust-proof oil must be used.
6. This testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. The machinery must be grounded.
