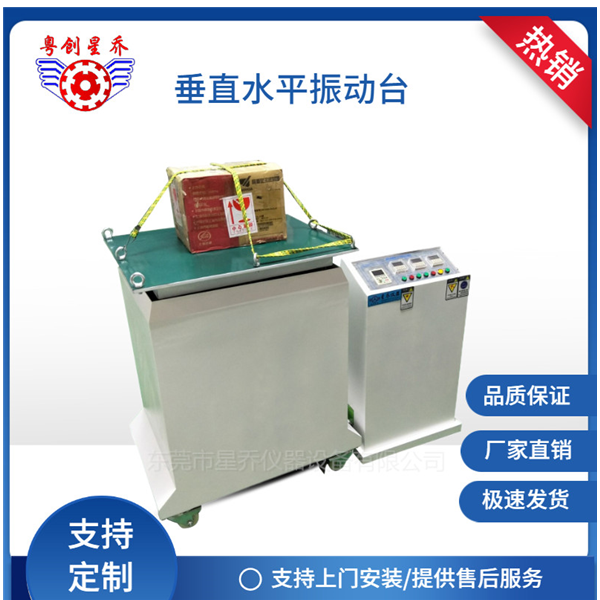

XQ-MV-70 Vibration Testing Machine
I. Application Scope of Vibration Table:
The vibration test bench is an excellent tool for advancing you into the realm of high quality. It simulates various vibration environments that lithium batteries, small electrical appliance finished batteries encounter during manufacturing, battery packs, and pouch batteries during transportation and usage. It can be tested individually or in multiple ways to determine whether the product can withstand environmental vibrations. It is suitable for the testing of electronic semi-finished products with incomplete soldering, the reliability of electronic components, mechanical, optoelectronic, automotive, toys, packaging, furniture, gifts, ceramics, and other products in various industries such as research, development, quality control, and manufacturing. It features high precision, low noise, and simple operation, making it an indispensable testing instrument for improving product quality.
II. Main parameters of the vibration table:
1. Working power supply: 380V/50Hz
2. Power: 2.5KW
3. Vibration mode: Testing in two directions: vertical and horizontal.
4. Output waveform: Sine wave
5. Output frequency: 5Hz - 60Hz / S, adjustable arbitrarily
6. Load: 70 kg
7. Displacement amplitude: 1 - 10 mm
8. Sweep frequency range: Adjustable from 5Hz to 60Hz
9. Sweep mode: Linear
10. Time Control: 99H99M99S
12. Control method: Programmed variable frequency control
13. Display: Frequency, Number of Occurrences, Time
14. Automatic shutdown upon reaching preset test count (adjustable)
15. Test table size: 600 * 700 mm
16. Table dimensions: Approximately 600 * 700 * 1038 mm
17. Volume weight: 150 kg
III. Advantages of the Vibration Table:
1.This testing machine can measure vibrations in two directions (vertical + horizontal).
2. The frequency can be automatically changed according to the program.
3. The vibration mode can be switched programmatically.
4. The system can be set up and will operate automatically without the need for personnel supervision.
IV. Vibration Table Structure:
1.This testing machine adopts a box-type enclosed structure.
2. The controller operates in a programmable cyclic mode.
3. The motor is equipped with two sets. One set is for vertical vibration, and the other set is for horizontal vibration.
V. Operating Method of Vibration Table:
1.Wrap the product in packaging materials and secure it on the testing platform.
2. Turn on the power of the machine, and set the frequency, duration, etc. at will.
3. The machinery automatically switches between vibration modes.
4. When the required value is reached, the machinery will automatically stop.
VI. Notes for the Vibration Table:
1.Before conducting the test, please make sure that the three-phase power is properly plugged in or connected.
2. When the machine is in operation, it is strictly prohibited to get too close to it.
3. The mechanical transmission parts must be maintained regularly and lubricating oil must be added at regular intervals.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust-proof oil must be used.
6. This testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. The machinery must be grounded.
