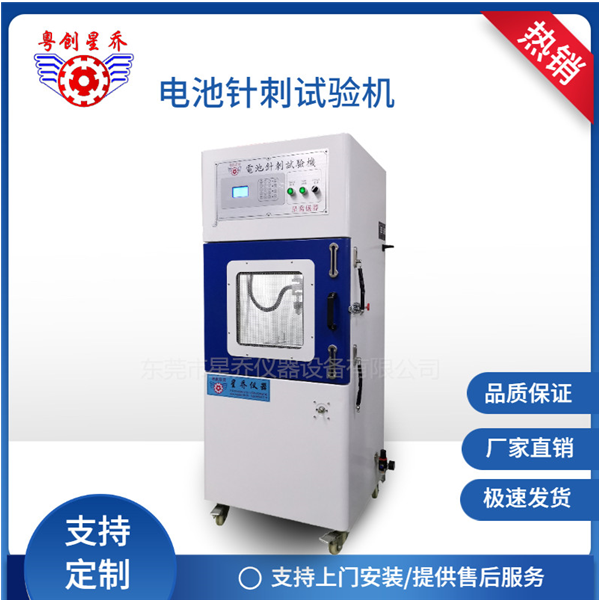

XQ-9002 Battery Pinching Test Machine
I. Application Scope of Battery Pinching Test Machine;
The battery puncture testing machine conducts puncture tests to evaluate the safety performance of batteries. The test results are determined based on real-time test data (such as battery voltage, the highest surface temperature of the battery, and pressure video data). After the puncture test is completed, the battery should not catch fire, explode or emit smoke. It is also an indispensable testing equipment for various battery manufacturers and research institutes.
II. Main parameters of the battery puncture testing machine;
1. High-temperature-resistant manganese steel needles ranging from 2mm to 8mm in diameter.
2. Distance between the tip and the lower part: The flat surface for placing the battery is 100MM (or as specified)
3. Clamping distance: 150MM
4. At a speed of 10 - 40 mm/s, pass through (the steel needle remains inside the battery) in a direction perpendicular to the battery's plates.
5. Puncture resistance: 150 - 200KG
6. Force Display: Pressure-sensing LCD Digital Display
7. Length: 150mm
8. Driving method: Cylinder drive
9. It is designed as a box-type equipment unit, featuring explosion-proof, fire-proof, corrosion-resistant and easy-to-clean properties.
10. Dimensions of the explosion-proof box (Width x Height x Depth): 450 x 750 x 550 mm
11. Material of explosion-proof box: High-quality paint treatment
12. Machine dimensions: 1640 × 570 × 730 mm
13. Control box dimensions: 300 × 260 × 170 mm
14. Weight: Approximately 85KG
15. Power requirements: 1 phase, 220V, 50Hz
III. Advantages of the Battery Pinching Test Machine;
1.This testing machine is controlled by a microcomputer with a text interface, which is simple and convenient, and the testing accuracy is precise.
2. An explosion-proof lamp is installed in the inner box to provide lighting for the entire testing process.
3. Equipped with high-precision test needles, it is durable and reliable.
IV. Structure of Battery Pinching Test Machine;
1.This testing machine is controlled by a microcomputer with a text interface, which is simple and convenient, and the testing accuracy is precise.
2. The box body is made of thickened double-layer explosion-proof box.
3. The testing principle is hydraulic.
4. Control method: Microcomputer text-based operation.
V. Operating Procedures for Battery Pinching Test Machine;
1. First, install the product on the test platform.
2. Turn on the machine and set the required values.
3. Conduct the test upon startup.
4. After the test is completed, the machine will automatically stop and display the test results.
VI. Notes for Battery Pinching Test Machine;
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. When conducting the test, make sure that the limit protection switch is securely fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust-proof oil must be used.
6. This testing machine must be used exclusively by one person. The machine must not be knocked on or occupied by anyone.
7. The machinery must be grounded.
