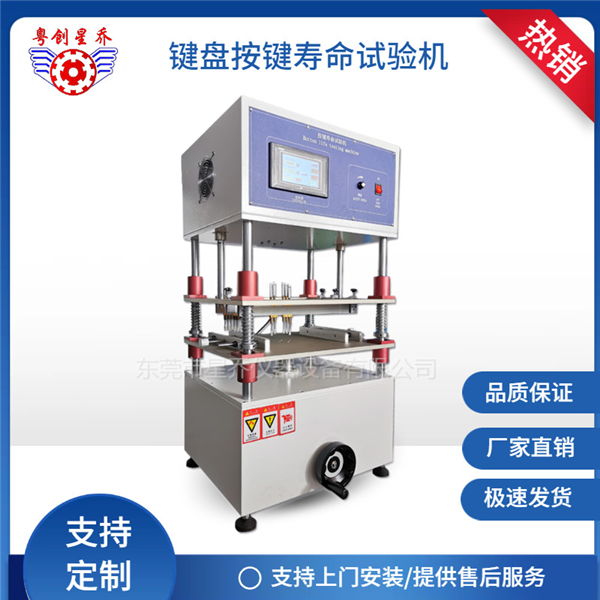

I. Product Usage:
Test the durability of the keys and other various buttons on notebook computers, mobile phones, and handheld computers, as well as the durability of switches.
It can test multiple products simultaneously (each product can be tested at multiple points) and each button can be set to different pressures and different levels of pressing force.
1.Action stroke: 10mm (fixed)
2. Adjustment range for the height of the workpiece: 100mm adjustable
3. Clamping capacity of the fixture: 400 × 300 mm
4. Installation range of the probe: 350 × 250 mm
5. Number of experiments: 999999 × 10 times
6. Test speed: 60 - 300 RPM/min
7. Load range: 50 - 450g
8. Adjustment of probe height: 15mm
9. Number of probes: 80 or 110 (chosen by the customer)
10. The minimum distance between the two probes
11. 10mm in the X direction, 20mm in the Y direction
12. Dimensions: 526 × 426 × 970 mm
13. Weight: 110 kg
14. Voltage: AC 220V/50HZ
II. Important Warnings;
Since each type of testing instrument has its own industry-specific characteristics, even if the product name is the same, due to the different target industries, the customer's product will also be different, and the compliance with international and national industry standards will also vary. The instrument equipment should determine the material, process, technical parameters, control procedures and other related configurations according to the customer's usage requirements.
The prices of the products displayed in this store and the various testing equipment are merely for reference and cannot be regarded as the actual transaction prices. The actual transaction prices and pictures will be based on the quotation plans made by our sales staff according to the customer's requirements.
