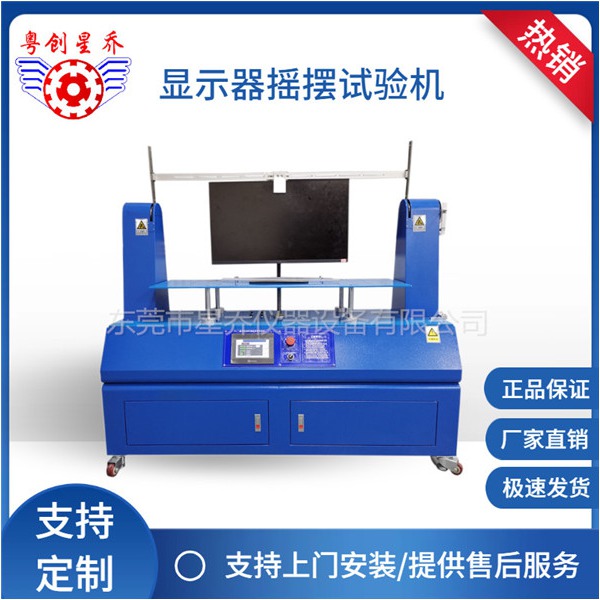

XQ-5600D Display Front-and-Back Swinging Testing Machine
I. Overview of This Machine;
This device is suitable for televisions, industrial computers, computer monitors, and NOTE-BOOK laptops. After multiple opening and closing of the cover, does the hinge still have retention force or does the resistance of the hinge increase and cause damage to the plastic body? This device features a color touch screen, full Chinese display, and is easy to use. All adjustments are made through numerical control, including angle, speed, and frequency. The hardware uses a stepper motor + precise PLC + touch method, with high precision, low noise, and long lifespan.
II. Characteristics;
All test conditions are directly inputted through touch.
2. It can display the actual angle and speed of the display screen's swaying.
3. After the product has been shaken N times, it will automatically start up after a pause of N minutes.
4. The touchscreen provides functions such as internal startup, reset, starting from the beginning and reversing direction for point finding...
5. The tabletop can be adjusted in height.
III. Main Technical Specifications;
1. Test load: 50KG or specified size
2. Working surface size: 1250*350mm
3. Overall machine dimensions: 1250 * 550 * 1300 mm
4. Angle setting: 5 - 180 degrees
5. Number of times setting: 1 to 999,999 (can be set arbitrarily)
6. Swing speed: 1 - 20 times per minute (depending on the angle size)
7. Speed unit: Set as either "times/minute" or "degrees/minute"
8. Weight: Approximately 580 kg
9. Power Supply: AC 220V 50Hz
10. Adjustable stroke of the force arm (support arm): Imported slider. 80 - 500 mm
11. Time delay range: 0 - 30 seconds
12. Other functions; Manual operation, find the origin, set the origin and set the starting point
