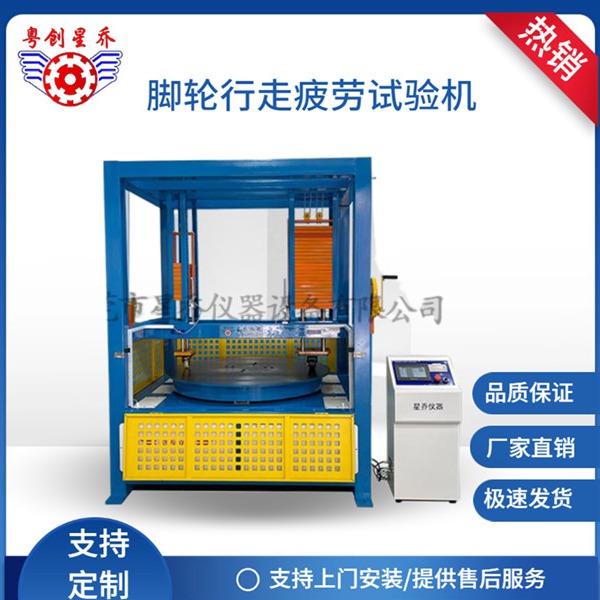

XQ-896E Wheel Fatigue Life Testing Machine
I. Application Scope of Foot Wheel Fatigue Testing Machine:
The foot wheel fatigue testing machine is an intelligent, diversified and high-tech fatigue life testing machine. It enables tests at different driving speeds and is used for industrial foot wheels, office foot wheels, universal wheels, to conduct durability fatigue life tests for walking, walking distance and other comprehensive tests, as well as static pressure tests, etc. Guangdong
Xingqiao Fatigue Testing Machine Supplier Factory.
II. Features of the Foot Rest Fatigue Testing Machine:
1.The fully touch-controlled system allows for the setting of speed, driving speed, obstacle detection, etc. on the touch screen at will.
2. The test data can be printed as reports using a micro printer and can also be copied onto a USB drive and imported into a computer for printing on A4 paper.
3. The machine will automatically shut down in case of product testing failure.
4. The automatic lifting of the equipment ensures that the product is no longer in contact with the turntable. To remove or install the product, simply press the up or down button on the touch screen.
5. The mechanical weight type is used to complete the measurement of the applied load.
6. Implement the control of fatigue test loads and the emergency stop function for fatigue failure.
7. With the aim of achieving higher reliability and stability, this fatigue testing machine for foot wheels in Guangdong and the closed-loop color touch screen control system are designed based on market demands. The main components are the touch screen control and the high-performance mechanical structure.
III. Structure of the Foot Restraint Fatigue Testing Machine:
1.The caster testing machine has a frame structure.
2. The load applied by the caster fatigue testing machine is controlled by mechanical weights.
3. The turntable rotates under the drive of the motor.
4. The system is controlled and monitored by an intelligent touch-type interface.
IV. Main parameters of the caster fatigue testing machine:
1.Test station: 2 stations (synchronized)
2. Load capacity: Two groups - 450kg and 150kg
3. Weights: 2 sets (as specified by the customer)
4. Obstacle height: One set (as per standard configuration)
5. Power supply voltage: 380V ± 10% 50Hz
6. Diameter of the rotating disc: 3 meters (performed in accordance with the standard)
7. Power: 7.5KW
8. Speed unit: KM/H, M/S (any conversion)
