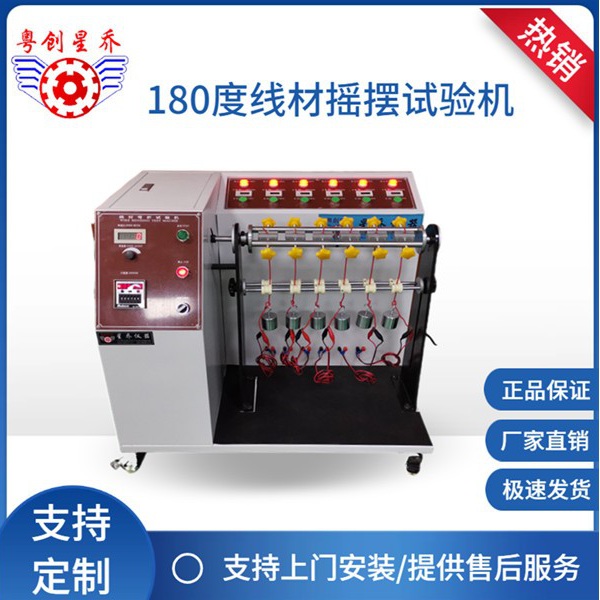

XQ-817 Wire Swinging Testing Machine
I. Application scope of the wire swaying testing machine：
This testing machine is suitable for various product bending and swaying tests. It is specifically used for testing the bending strength and lifespan of plug leads and various copper wires. This machine can automatically count when it reaches the end or when a wire breaks, and it has the function of automatically stopping the count and shutting down the machine after completion.
II. Main parameters of the wire swaying testing machine：
1. Working power supply: AC 220V/50Hz
2. Power: 95W
3. Test speed: Adjustable from 5 to 60 times per minute
4. Bending angle: Adjustable from 45°, 60°, 90° to 180°
5. Test station: 6 stations synchronized
6. Position control and test: Conduct 6 or 1 plug lead tests simultaneously each time. Each test is independently controlled, counted, and reset.
7. Total bending times: Can be preset from 0 to 999,99
8. Resetting the count: Automatic and manual conversion functions
9. Weights: 6 pieces each of 50g, 100g, 200g, 300g, and 500g.
10. Dimensions: 650*600*750mm
11. Weight: Approximately 85 kilograms
12. Speed Control: Stepless Speed Regulation with LED Display
III. Features of the Wire Swinging Testing Machine：
1.The progressive design employs horizontal moving rods to eliminate the unevenness of vertical inertia during slow tests.
2. The moving rod of the transmission mechanism of this machine is fixed with spherical bearings, which avoids the resistance caused by shape and position dimensions.
3. The speed is detected by photoelectric sensors and the signals are transmitted to the digital display meter. By directly adjusting the variable speed controller, the speed value can be read out.
4. The entire machine is made by cold steel welding. The exterior is fully coated with high-quality lacquer, ensuring long-lasting durability. The bottom features round wheels, making it highly flexible and convenient for movement.
