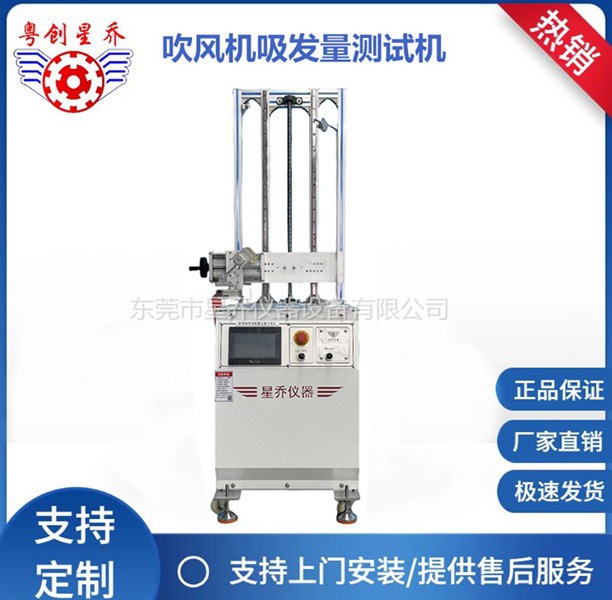

XQ-TF855B Hair Dryer Hair Absorption Testing Machine
I. Technical Description：
1.There is one test workstation set up (including a computer and a monitor).
2. The comb and hair dryer automatically comb the hair. The number (width) of the comb teeth and the distance between the blowing end face of the hair dryer and the comb teeth can be adjusted by two guide rods. The comb can be manually replaced and clamped: The maximum length of the test sample: 18 inches (457.2mm).
3. Speed setting range: 0 - 1000 mm/s (The running speed and reset speed need to be set separately. The display format is: 0.00 mm).
II. Specifications and Parameters：
1. The test is controlled by a touch screen.
2. Testing station: 1
3. Moving screw: Ball screw
4. Power source: Servo motor + Servo driver + Transmission gearbox
5. Effective travel testing: The Z-axis can be set to any position within the range of 0 - 750mm.
6. Linear linear speed setting: 0 - 1000 mm/s
7. Equipment power supply: 220V 50HZ
8. Equipment air source: Adjustable from 1 to 6 kilograms
9. Equipment appearance: Floor-standing all-in-one machine
10. Equipment dimensions approximately: 600*700*1500mm
11. Equipment weight approximately: 125KG
