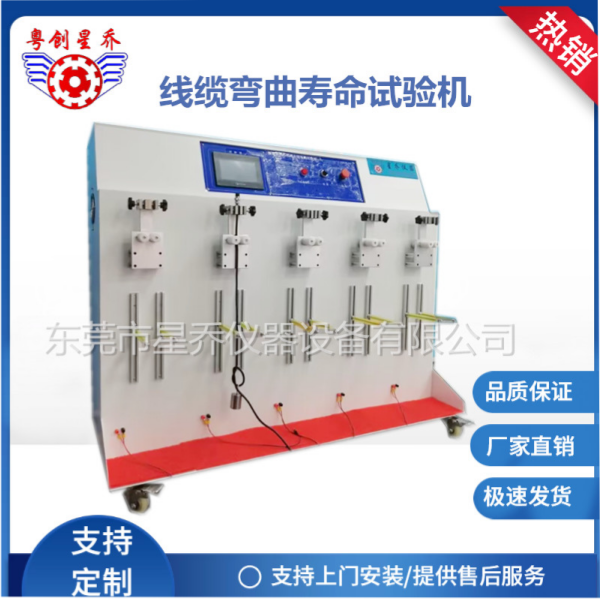

XQ-8098 Robot Cable Bending and Swinging Testing Machine
I. Scope of Application:
II. Meeting the Standards:
Compliant with standards such as those of the China Robot Industry Alliance, namely CRIA 0003.2-2016 "Specialized Cables for Industrial Robots - Part 2":
The test method and PfG 2577/08.16 standard requirements.
III. Main Features:
3.1 PLC Touch Screen
3.2 Parameter Settings: Control parameters related to the machine.
3.2.1 Test Conditions: Test speed, test frequency, test angle, control conditions, etc.
3.2.2 Test Monitoring: Current operating status of the equipment, such as the actual number of times the cables are bent and the speed during operation;
3.2.3 Unattended operation: The equipment can monitor the circuit of the sample, automatically determine the connection status of the sample, and when it detects a circuit break, it will...
Automatic shutdown, no need for personnel to be on duty.
3.2.4 Special fixtures: Different types of cable are equipped with corresponding bending curvature rollers to adjust the bending curvature radius.
3.2.5 Machine Performance: The machine is equipped with LCD, PLC and motor. All transmission components are made by well-known brands, ensuring smooth operation with high torque and precise control.
High precision, long service life, low noise;
3.2.6 The online monitoring points are divided into 5 groups, with 1 pair of interfaces in each group. This design enables the simultaneous monitoring of multiple wires connected in series.
