Walking aid walking life test machine

Walking aid walking life test machine

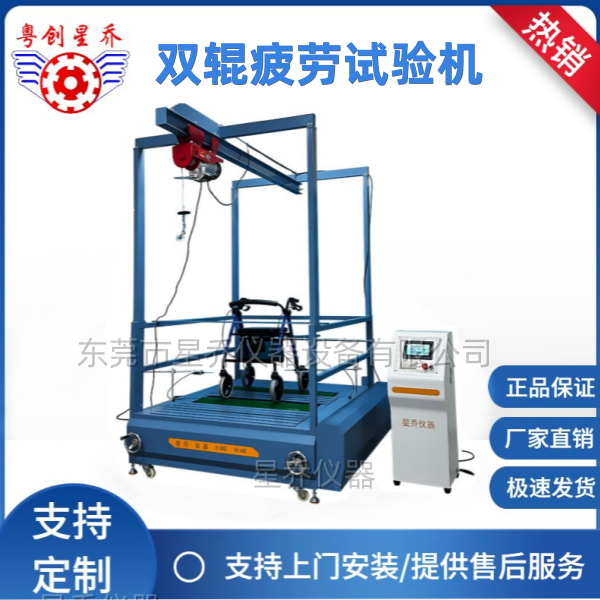

XQ-6256B Walking Life Test Machine for Assistive Devices
I. Application scope of the walking endurance test machine for assistive devices:
This testing machine is used for conducting road condition fatigue tests on walkers, wheelchair vehicles, and elderly mobility vehicles, and visually assessing the degree of damage to the wheelchair vehicles. This machine is suitable for manual wheelchair vehicles that can be operated by the user themselves or by caregivers, as well as indoor and outdoor electric wheelchair vehicles.
II. Test standards for walking life of walking aids:
Test principle and test standards: GB/T 13800-2009 / ISO 7176-1.1999. The relevant test standards are GB/T 18029.8. This instrument is based on GB/T 18029.8 and ISO 7176-8:2014.
III. Main parameters of the walking endurance test machine for assistive devices:
1.Diversified intelligent control.
2. Equipment load capacity: 400KG; Customizable, (Guests are responsible for providing the counterweight)
3. It can display time, speed, walking distance, and automatically stops when reaching the preset distance.
4. Speed: Adjustable
5. Has the function of automatically saving test results during power outage
6. Time setting: Can be set arbitrarily
7. Distance setting: Can be set arbitrarily
8. It can be tested in both two-wheel and four-wheel modes.
9. Drum: 2 sets
10. Dimensions: 1600*1800*2300mm
11. Weight: 560kg
