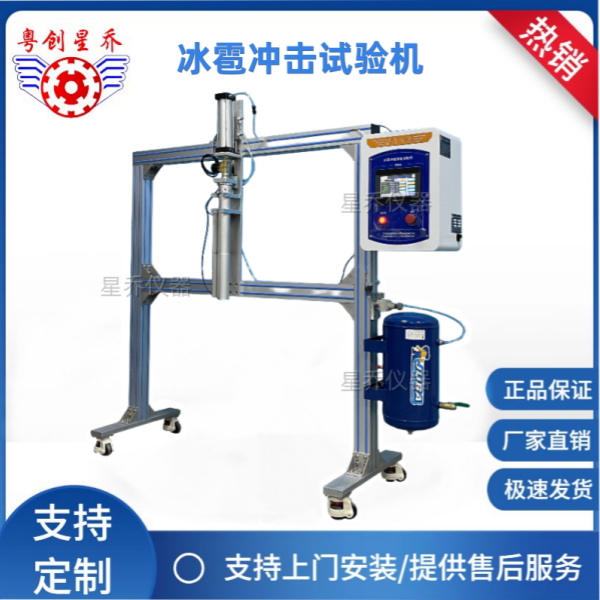

XQ-61215C Hail Impact Testing Machine
I. Purpose：
The hail impact testing machine is designed and manufactured in accordance with relevant clauses of IEC 61215, 61646 and other standards. It is a non-standard, simplified type and is used to verify the ability of components to withstand hail impacts. Artificially made ice balls are used to simulate hail, and they are impacted on the components at a constant speed to simulate the impact of hail weather on the components.
II. Main Parameters：
1. Hockey puck mold: The standard diameters are 35mm and 45mm.
2. Test count: 1 - 999
3. Standard ice hockey speed: 23.0 m/s ± 2% series (diameter 35 mm: 27.2 m/s ± 2%); (diameter 45 mm: 30.7 m/s ± 2%)
4. Testing station: 1 station
5. Sample holder: 1000mm
6. Power: 400W
7. Power Supply: 220V/50HZ
8. The frame is made of industrial aluminum profiles with appropriate dimensions.
9. Equipment dimensions: 2100*500*2050mm
