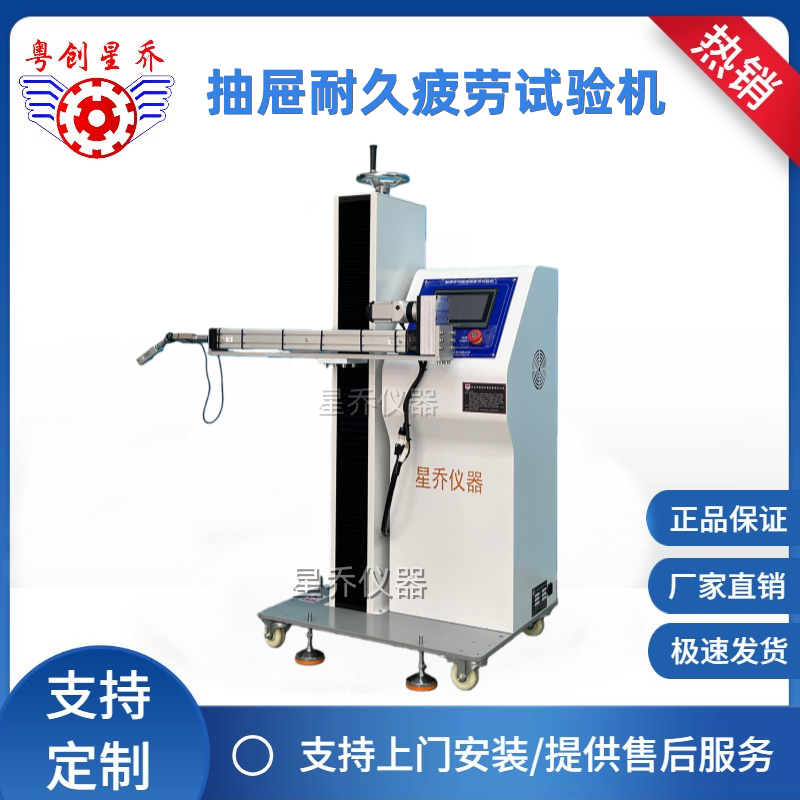

XQ-8911D Electric Cylinder Model Drawer Durability Fatigue Testing Machine
I. Overview of the Electric Cylinder Type Drawer Durability Fatigue Testing Machine;
This testing machine is suitable for conducting the opening and closing capability life test of drawers. It uses an electric cylinder drive method to push the drawer to perform reciprocating rotation. The electric cylinder serves as the power source to drive the telescopic connecting rod to perform reciprocating linear motion and reciprocating rotation, thereby completing the reciprocating action of "opening and closing" of the drawer.
II. Applicable Standards for Drawer Hinge Fatigue Test Machine;
The light industry industry standard of the People's Republic of China QB/T2189, references the following standards: ISO15502-2005, GB/T8059-1995, GB/T8059.2-1995, and GB/T8059.3-1995.
III. Main parameters of the drawer hinge fatigue testing machine;
1.Power supply voltage: 220V ± 10% 50Hz
2. Total count range: 0 - 999999 (Set by touch screen at will)
3. Test travel range: 0 - 500mm
4. Adjustment device; 1 set
5. Adjustable range of height: 600mm (can be adjusted according to customer's product requirements)
6. Speed: 1 - 35 times per minute. Time Controller: Adjustable from 0.1 seconds to 99.99 hours.
