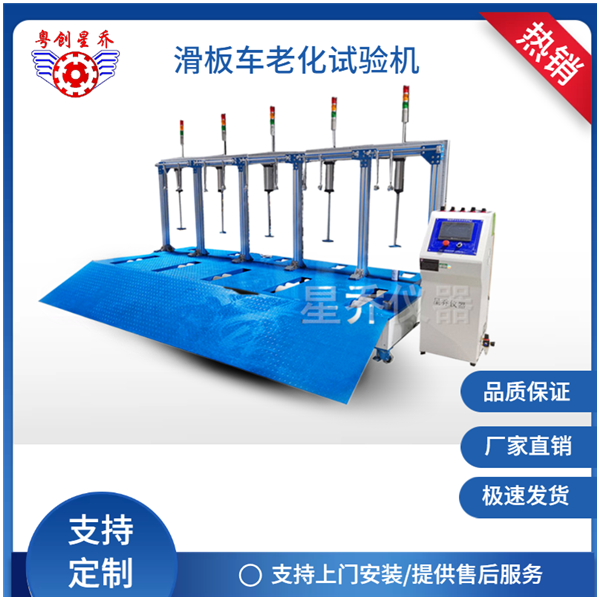

XQ-894-5C Skateboard Aging Testing Machine
I. Product Application Scope of Electric Scooter Aging Testing Machine:
This testing machine is mainly used for the long-term working aging of skateboards. It can display the test speed, load (by adjusting the air pressure to correspond to stress), and automatically power off and stop when the specified time is reached. It also has the functions of adding NG or OK and other functions.
II. Technical parameters of the scooter aging testing machine:
Main test items: Electric scooters, balance bikes
Customized according to customer needs, meeting various testing requirements.
Test station: 5th station
Main test parameters: The test duration can be adjusted from 1 minute to 99 hours.
Independent load: Load: 120 kilograms, adjustable load
Loading method: Standard cylinder type, controlled by air pressure (equipped with a pressure-to-force adjustment chart)
Test speed (Starjoy Instrument)
Button or pedal start function
Multi-station simultaneous testing: Commonly uses 5 stations
The touch screen independently displays relevant parameters. The machine is set at a height of 300mm from the ground, and it is equipped with a sloping tabletop.
Wheel spacing width: Adjustable (Xingqiao Instrument)
Independent control, independent startup, independent parameters, independent system, safe and durable
With color indicator lights, test and stop indications
The machine is made of steel and is coated with spray-painted finish.
The main unit of the equipment is equipped with 4 movable wheels and adjustable feet, which are convenient and safe.
The front and rear wheel tubes each adopt a double-drum design.
Using American bearing UBC, cylinder configuration: Imported brand Yadek from Taiwan
The drum is treated with electroplating for a permanent anti-rust coating.
Overall dimensions: Approximately 3500mm (length) x 1800mm (width) x 1300mm (height)
Equipment weight: 1250KG
III. Precautions for the Skateboard Ageing Testing Machine：
1.Before conducting the test, please make sure that the bracket is not loose with any screws or similar issues. If any looseness is found, please tighten it before the test.
2. During the test, it is strictly prohibited for anyone to stand nearby.
3. Regular maintenance of mechanical transmission parts requires the addition of lubricating oil.
4. It is strictly prohibited to use corrosive liquids for cleaning. Instead, use anti-rust oil.
