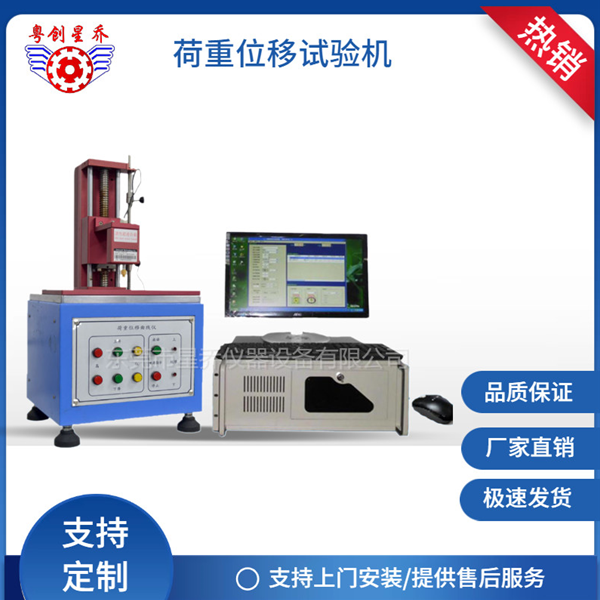

XQ-S205 Button - Switch Load-Displacement Testing Machine
S205 Button - Switch Load-Displacement Testing Machine is suitable for various buttons and switches regarding (load - displacement) measurements.
Curve, test, by using the Chinese Windows interface to set up, the operation is simple and convenient, and all
All the data can be stored (such as test conditions, displacement curves, life curves, inspection reports, etc.)
S205 button - The switch load displacement curve testing machine is driven by a servo motor and can provide high-precision results.
By conducting the (load-displacement) measurement, a completely accurate test for the key and switch curves can be obtained.
S205 button - Characteristics of the switch load displacement curve testing machine:
PEAK FORCE, RETURNFORCE, DISTANCE and CLICK rate, etc. can all be directly obtained.
The values are displayed on the graph, eliminating the need for manual calculation.
The measurement curve graph is stored in the computer and can be enlarged or reduced at any time. One A4 sheet of paper can be used for any purpose.
Specify to place N number of charts.
The test items can input the upper and lower specification values, and the test results can automatically be judged as "OK" or "NO".
The maximum measurement stroke and load can be input, and the computer will automatically control.
The test report can be converted into formats such as EXCEL or other document reports.
The inspection reports can be automatically generated and no further input is required.
The header content of the inspection report can be modified at any time.
The test conditions are all set by the computer screen, which is convenient and fast.
The test data is stored on the hard disk. (Each piece of data can be saved and there is no limit to the number of times it can be saved.)
The computer directly prints and stores the force displacement curve graph and the inspection report. (No need)
Graph paper (usually A4-sized paper will do)
The load unit can be freely switched between N, Ib, g and kg.
S205 Button - Switch Load Displacement Curve Testing Machine Specifications
Determine the maximum load: 2 kg
Minimum decomposition degree: 0.1g
Maximum measurement height: 100mm
Minimum adjustment distance: 0.01mm
Measurement speed range: 0 - 100 mm/min
Transmission mechanism: Ball screw
Drive motor: Panasonic servo motor
Overall dimensions: 300*270*500 (Width x Depth x Height) mm
Weight: 31 Kg (machine)
Power Supply: AC 110V or 220V
I. Important Notice;
Since each type of testing instrument has its own industry-specific characteristics, even if the product names are the same, due to the different target industries, the customer's products will also be different, and the compliance with international and national industry standards will also vary. The instrument equipment should determine the material, process, technical parameters, control procedures and other related configurations according to the customer's usage requirements.
The prices of the products displayed in this store and the various testing equipment are merely for reference and cannot be regarded as the actual transaction prices. The actual transaction prices and images are subject to the quotation plans made by our sales staff based on the requirements of the customers.
