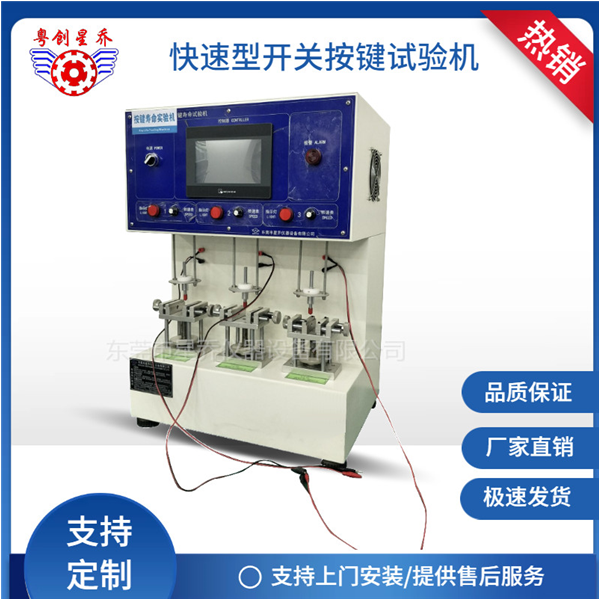

XQ-887 Switch Button Life Testing Machine
1.Test speed: 10 - 100 cycles per minute. Speed adjustable.
2. Test load: Adjustable from 50g to 500g (or as specified)
3. Counter: LED 1 - 999999 (Individual setting and control)
4. Up and down travel: 10mm
5. Test bench size: 80*80mm
6. Workbench height adjustment: 100 mm (3 sets of handwheel height adjustment device)
7. Probe spacing: 150mm
8. Impact motion mode: The up-and-down compression mechanism adopts linear bearing motion, ensuring precise positioning.
9. Testing Function: Life Test / Conduction Test Conversion (Stop counting and stopping the test upon reaching the specified number of cycles / Stopping the count and stopping the test upon product damage)
10. Counter: The counter can be set to a 6-digit number: it will automatically stop after 9,999,99 operations.
11 Counter: 3 groups (independent counting)
12. Probe: 3 sets
13. Test station: 3 groups (each group is independent)
14. Test specimen fixtures: 3 sets
15. Speed regulator: 3 units, speed display units: 3 sets
16. Machine dimensions: Approximately 400*500*350mm
17. Power: Approximately 100W
18. Power supply voltage: 220V ± 10% 50Hz
19. Machine weight (approximate): 120 kg
I. Important Notice;
Since each type of testing instrument has its own industry-specific characteristics, even if the product names are the same, due to the different target industries, the customer's products will also vary, and the compliance with international and national industry standards will also be different. The instrument equipment should determine the material, process, technical parameters, control procedures and other related configurations according to the customer's usage requirements.
The prices of the products displayed in this store and the various testing equipment are merely for reference and cannot be regarded as the actual transaction prices. The actual transaction prices and pictures will be based on the quotation plans made by our sales staff according to the customer's requirements.
