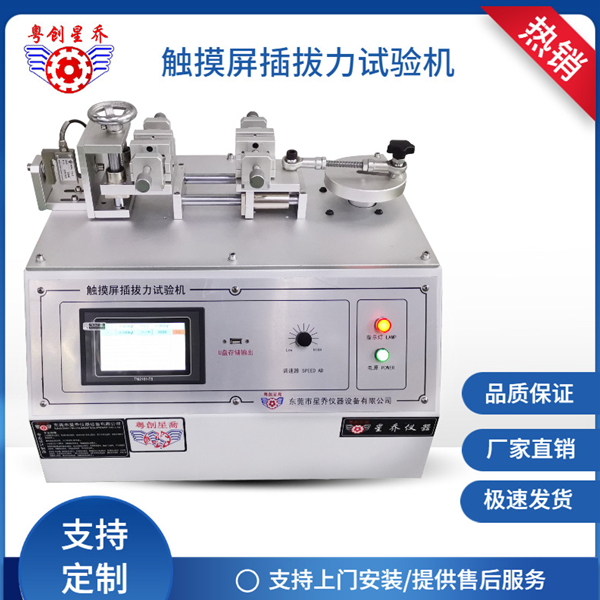

XQ-5800 Touchscreen Plug-in Force Testing Machine
I. Overview of This Machine：
This plug-in force life testing machine adopts a touch screen design, with a beautiful appearance. It is equipped with a separate matrix keyboard and an AD acquisition card, making intelligent input much simpler and more convenient. The force value measurement accuracy is high, and it is suitable for testing the insertion force and pull-out force of various connectors. It solves the fixture problems in various connector tests and ensures that the male and female connectors can automatically align during the test, without any unilateral sticking issues. It can obtain completely accurate pull-out force tests and can also perform general stretching and compression tests. The interface is in Chinese, allowing for easy setting of test conditions and simultaneous display of each insertion force and (PEAK value). It stores each test data and can be saved for up to 3,000,000 records. It supports storage of up to 30 million records and can be read into a computer to create A4 reports, allowing you to get rid of the limited recording method using cash register paper.
II. Main Technical Specifications：
1.Power supply voltage: 220V ± 10% 50Hz
2. Travel adjustment range: Adjustable from 0 to 60mm
3. Machine weight (approximate): 60kg
4. Testing fixtures: One set (standard equipped with USB fixtures)
5. Test speed: 0 - 60 (digital display)
6. Conversion of three force units: N, KGf, LB, free conversion between them
7. Pulling force range: 0 - 50 kg
8. Counting range: 0 to 999999, can be set arbitrarily
9. Minimum insertion and removal force resolution: 0.01 kg
10. Machine dimensions: Approximately 550*450*350mm
11. Travel adjustment: Cam structure
12. Mother handle height adjustment: 60 mm
13. USB storage interface, capable of reading large-capacity test data.
14. Force Display: LCD shows maximum force, real-time force, and number of tests
