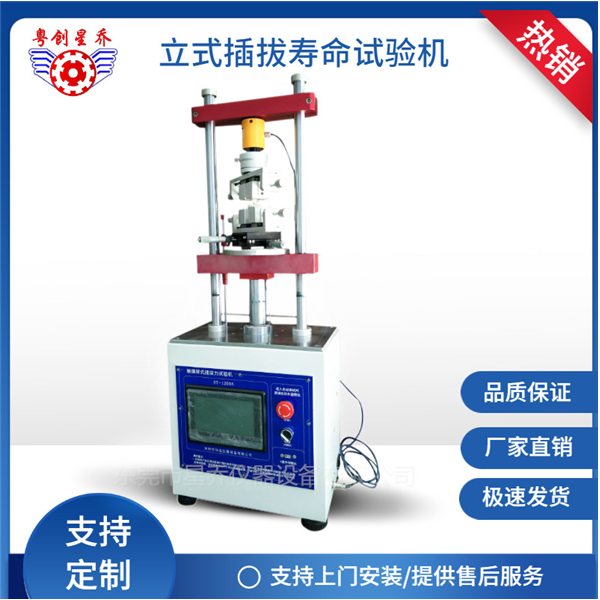

XQ-1220S Fully Automatic Pull Force Testing Machine
I. Application Scope of the Fully Automatic Pulling Force Testing Machine：
This machine is suitable for testing the insertion force and pull-out force of various connectors. It is equipped with a dedicated automatic centering device to solve the fixture problems in various connector tests. During the test, the male and female connectors can automatically align without any deviation on one side. It can obtain completely accurate pull-out force tests and can also perform general stretching and compression tests. The testing software is based on Windows, with a Chinese interface for operation. It allows for convenient setting of test conditions and can simultaneously display the insertion force and (PEAK value) for each test. It can automatically print or transfer the results to a computer for report editing and drawing of life curve graphs. It can store test data and output reports in Excel format for editing.
II. Features of the Fully Automatic Pulling Force Testing Machine:
1. Windows interface.
2. The test conditions are set in writing on the computer, which is convenient and efficient (including plug-in and removal process, speed, pause time, etc.)
3. Printable and storable graphics (plug-in displacement curve graph, life curve graph, inspection report, etc.)
4. Unlimited data storage memory (massive storage)
5. The header content of the report can be modified. The report can be transferred to Excel for editing.
III. Main parameters of the fully automatic tensile force testing machine:
1. Determine the maximum load: 50, 20, 5, 2 kg
2. Minimum decomposition energy: 0.01 kg or 1 g
3. Maximum measurement height: 150mm
4. Minimum adjustment range: 0.01 mm
5. Measuring speed range: 0 - 200 mm/min
6. Travel along X and Yz axes: 0 - 75 mm
7. Transmission mechanism purchase: Imported ball screw
8. Drive Motor: Imported servo motor
9. Dimensions: 360 * 260 * 940 mm
10. Weight: 67kg (machine)
11. Power Supply: AC 220V
IV. Operating Procedures for the Fully Automatic Pulling Force Testing Machine：
1. First, fix the product onto the testing fixture.
2. After fixing the product.
3. The machine is powered on, the required test values are set, and the machine then conducts the test.
4. Once the test value is reached, the machine will automatically stop, and the test result will be displayed clearly.
V. Notes for the Fully Automatic Pulling Force Testing Machine：
1.Before conducting the test, please make sure that the power supply is properly plugged in or connected.
2. Before conducting the test, make sure that the product is properly installed and fixed.
3. The mechanical transmission parts must be maintained regularly.
4. After the test is completed, it is necessary to ensure that the power supply has been turned off.
5. It is strictly prohibited to use auxiliary corrosive liquids to clean the machine. Instead, rust preventive oil must be used.
6. This testing machine must be used exclusively by one person. During the testing process, it is strictly prohibited to strike the machine or have anyone stand near it.
7. The machinery must be grounded.
